Série SR1354

Protetores de Face de Flange

Especificacoes:

Caracteristicas:

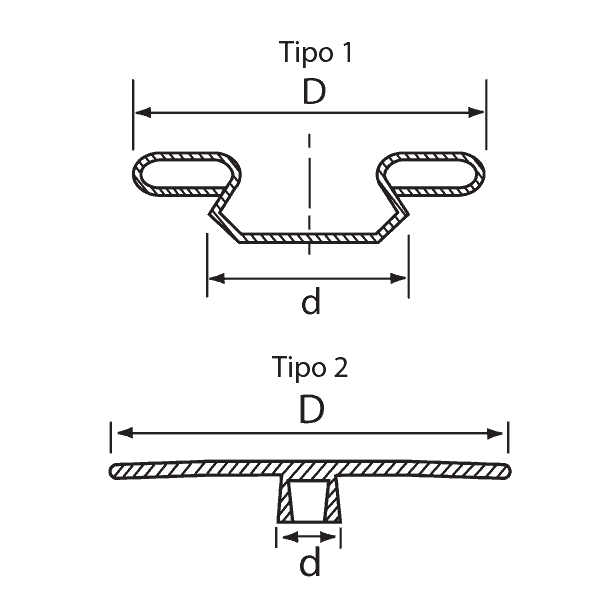

Número da Peça	Tipo	DIN	Diam Nominal	D Dimension (mm)	d Dimension (mm)
31648	2	DN 15	1/2"	45.0	15.8
31653	2	DN 20	3/4"	58.0	20.8
34325	2	DN 25	1"	68.0	26.0
31649	2	DN 32	1-1/4"	78.0	33.5
34326	2	DN 40	1-1/2"	88.0	41.5
32440	1	DN 50	2"	102.0	49 - 55
110295	2	DN 50	2"	103.0	51.0
32441	1	DN 65	2-1/2"	122.0	63 - 70
32442	1	DN 80	3"	138.0	76 - 83
32443	1	DN 100	4"	162.0	100 - 107
34335	1	-	-	165.0	90 - 100
32444	1	DN 125	5"	188.0	123 - 132
32445	1	DN 150	6"	218.0	149 - 159
34336	1	-	-	240.0	130 - 140
34337	1	-	-	245.0	140 - 150
32446	1	DN 200	8"	285.0	196 - 207
34338	1	-	-	310.0	185 - 200
32447	1	DN 250	10"	345.0	247 - 260
34339	1	-	-	370.0	220 - 240
32448	1	DN 300	12"	410.0	295 - 310
32449	1	DN 350	14"	465.0	325 - 341
32450	1	DN 400	16"	530.0	374 - 392
32451	1	DN 450	18"	570.0	424 - 443
32452	1	DN 500	20"	625.0	472 - 494
34370	1	DN 600	24"	725.0	570 - 596
